Revolutionize Cylindrical Printing With Single Pass UV Technology

NOVA’s single pass UV printer captures the full image in one revolution, achieving print speeds of up to 400 cylindrical bottles per hour without ghosting or banding. The fixed printhead array and synchronized rotary encoder deliver edge-to-edge registration at ±0.03mm, critical for full-wrap designs. An Australian wine bottle decorator replaced multi-pass machines and slashed cycle time by 65%, producing 3,200 bottles per shift with stunning 1200 dpi art. White ink opacity reaches 92% on dark glass in a single layer, while instant UV LED pinning prevents dot gain. Tool-less job changeovers occur in under two minutes, enabling profitable runs as low as 24 pieces. The closed-loop ink system degasses and recirculates, cutting ink waste by 35%. This single pass approach eliminates the complexity of indexing tables, reducing mechanical wear and maintenance to just 30 minutes weekly.
Get A Quote

Case Study

Wine Bottle Decorator Saves 800 Labor Hours Annually

A boutique winery in Napa Valley transitioned from hand-applied labels to NOVA’s single pass UV printer for direct-to-glass bottle decoration. The machine printed wrap-around vineyard scenes with embossed varnish on 1,500 bottles daily, cutting decoration cost per bottle from $1.80 to $0.52. The single pass architecture ensured that every bottle, regardless of slight diameter variations, received perfect registration thanks to dynamic surface mapping. They reduced labor from three full-time staff to one operator, saving 800 hours annually. The UV-cured ink withstood ice bucket condensation and abrasion during shipping, resulting in zero customer complaints. After adding variable numbering for limited editions, their collector’s club membership grew 22%. The winery recouped its investment in five months.

Spirit Brand Launches Premium Gift Packs In Record Time

A Scottish spirits producer needed to launch a holiday gift set with complex metallic and matte effects on 750ml glass bottles. Using NOVA’s single pass UV printer, they printed directly with white, CMYK, and dual varnish channels at 350 bottles per hour. The single pass process eliminated multi-pass misregistration risks, delivering flawless 360-degree imagery with a tactile embossed crest. The entire 20,000-bottle order was completed in six days versus the eight weeks previously needed for screen printing and hot stamping. Consumer panel tests rated the digital decoration 23% more premium in appearance. The brand subsequently consolidated all limited-edition decoration in-house, reducing outsourced tooling expenses by $90,000 annually and accelerating time-to-market for six seasonal releases.

Craft Brewery Boosts Can And Bottle Customization

A rapidly growing craft brewery in Colorado purchased a NOVA single pass UV printer to decorate aluminum cans and glass growlers with ever-changing artwork. The machine handled both container types without fixture changes due to quick-release mandrels. Daily output reached 4,000 units, and the single pass mode preserved crisp 4-point text and photo-quality label art. They launched a weekly “artist series” can, which increased taproom sales by 27% and social media mentions by 150%. Ink adhesion passed pasteurization and 24-hour ice immersion tests. Inventory of pre-printed cans dropped to zero, freeing $40,000 in warehousing capital. The brewmaster called the printer a “creative engine” that allowed real-time design uploads the night before canning.

Related products

single pass uv printer-0 VIEW DETAILS

ECO-6 Cylinder UV Inkjet Printer
(EPSON I1600 Series)

single pass uv printer-1 VIEW DETAILS

ECO Plus Cylinder UV Inkjet Printer
(RICOH Gen6 Series)

single pass uv printer-2 VIEW DETAILS

DIGITUBE Rotary Tube UV Inkjet Printer
(EPSON I1600 Series)

single pass uv printer-3 VIEW DETAILS

UNIVISUAL-6 AI Scanning UV Conveyor Inkjet Printer
(RICOH Gen6 Series)

The shift from multi-pass to single pass UV printing is reshaping the cylindrical object decoration industry, and NOVA Inkjet Technology leads this transformation. Our single pass UV printers employ stationary printheads that span the entire image area, laying down all colors, white, and varnish in one synchronized revolution. This method eliminates the cumulative registration errors and banding common with indexing systems, achieving print precision within 30 microns. At a glass bottle manufacturing plant in Thailand, two NOVA single pass machines replaced a fleet of six semi-automatic screen printers, boosting overall equipment effectiveness from 62% to 91%. UV LED curing, integrated immediately after each color station, freezes droplets to prevent feathering, enabling detailed halftones and tiny QR codes that scan instantly. Built on granite composite bases for vibration damping, our machines maintain consistent quality across 200,000 cycles without recalibration. NOVA’s proprietary RIP software handles tapered compensation and 3D surface mapping, ensuring distortion-free prints on conical drinkware. With over 200 installations worldwide, our single pass UV technology supports beverage, cosmetics, and promotional industries, delivering repeatable results that align with ISO 12647-2 digital printing standards. Rapid amortization, often under 12 months, makes this industrial solution accessible to mid-sized decorators seeking to bring production in-house.

Frequently Asked Questions

How does a single pass UV printer differ from multi-pass?

A single pass UV printer captures the complete image in one drum rotation using fixed printheads, avoiding multiple indexing movements. This eliminates misregistration, increases speed up to 400 pieces per hour, and reduces mechanical complexity. For round objects, it ensures seamless full-wrap prints without start-stop artifacts.
Our machines accommodate cylindrical items from 40mm to 200mm diameter, including glass bottles, stainless steel tumblers, aluminum cans, and plastic jars. Quick-change mandrels and automatic diameter sensing enable switching between sizes in under two minutes, making it ideal for diverse product lines.
Yes, NOVA’s recirculating white ink system delivers 92% opacity on dark glass in one layer. The single pass process includes pinning lamps that freeze the white underbase before CMYK overlays, producing vibrant images on black, green, or amber substrates without double-strike printing.
It eliminates screen plates, films, and chemical processing. A distillery reported decoration cost drops from $1.15 to $0.38 per bottle. Energy consumption is 60% lower than thermal curing, and automated maintenance reduces labor. Combined, these factors typically yield ROI in 9 to 12 months.
Absolutely. NOVA provides conveyor interfaces and robotic load/unload options to connect with filling lines. A beer bottler integrated one machine between labeler and packer, achieving inline decoration at 80 bottles per minute without reducing line speed, thanks to high-speed single pass operation.

Related article

How does UV inkjet printing on wood compare to traditional wood printing methods?

30

Jun

How does UV inkjet printing on wood compare to traditional wood printing methods?

Curing on Contact Versus Soaking Into the Grain The fundamental difference between UV inkjet and traditional wood printing comes down to how the ink behaves once it hits the surface. Screen printing and pad printing typically rely on solvent based ...
View More
Why is cylinder inkjet printing faster than traditional screen printing for bottles?

30

Jun

Why is cylinder inkjet printing faster than traditional screen printing for bottles?

The Rotation Problem That Cylinder Inkjet Solved Bottles are round, and round objects hate staying still. Traditional screen printing on cylindrical containers relies on a curved screen that rocks across the bottle surface while a stationary squeeg...
View More
Why should your business invest in a bottle inkjet printer for labeling?

30

Jun

Why should your business invest in a bottle inkjet printer for labeling?

The Hidden Cost of Label Inventory Every pre-printed label sitting on a warehouse shelf represents cash that cannot be used for anything else. A beverage brand with 15 SKUs, each requiring labels in three sizes and two languages, can easily carry o...
View More
Why choose a customized printer over a standard off-the-shelf model?

30

Jun

Why choose a customized printer over a standard off-the-shelf model?

The Assumption Built Into Every Standard Printer An off-the-shelf industrial printer ships with a set of assumptions baked into its engineering. The designers picked a printhead type, a curing wavelength, a transport mechanism, and a control interf...
View More

Customer Testimonials

Ahmed Hassan

The single pass UV printer from NOVA transformed our gifting business. We now print 3,000 personalized glass flasks daily with zero registration errors. The white ink on dark glass looks painted, and the varnish raises our brand perception. We recovered the cost in ten months and purchased a second unit.

Elena Rossi

After years of outsourcing bottle decoration, NOVA’s single pass machine gave us control. We print exact Pantone colors on 5,000 bottles per shift. Variable data lets us add unique codes, essential for traceability. Downtime is virtually nonexistent; we clean heads once weekly. Our per-unit cost fell 55%.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
tumbler printer machine single pass UV printer high speed digital printing uv printing machine for tumblers automatic tumbler printing machine cylinder printer for tumblers digital tumbler printing machine industrial tumbler printing machine stainless steel tumbler printer tumbler printer factory tumbler printer manufacturer industrial inkjet system supplier industrial printing solution provider industrial single pass printer one pass printing technology single pass bottle printer single pass printer supplier single pass printing machine manufacturer UV inkjet single pass visual positioning printing

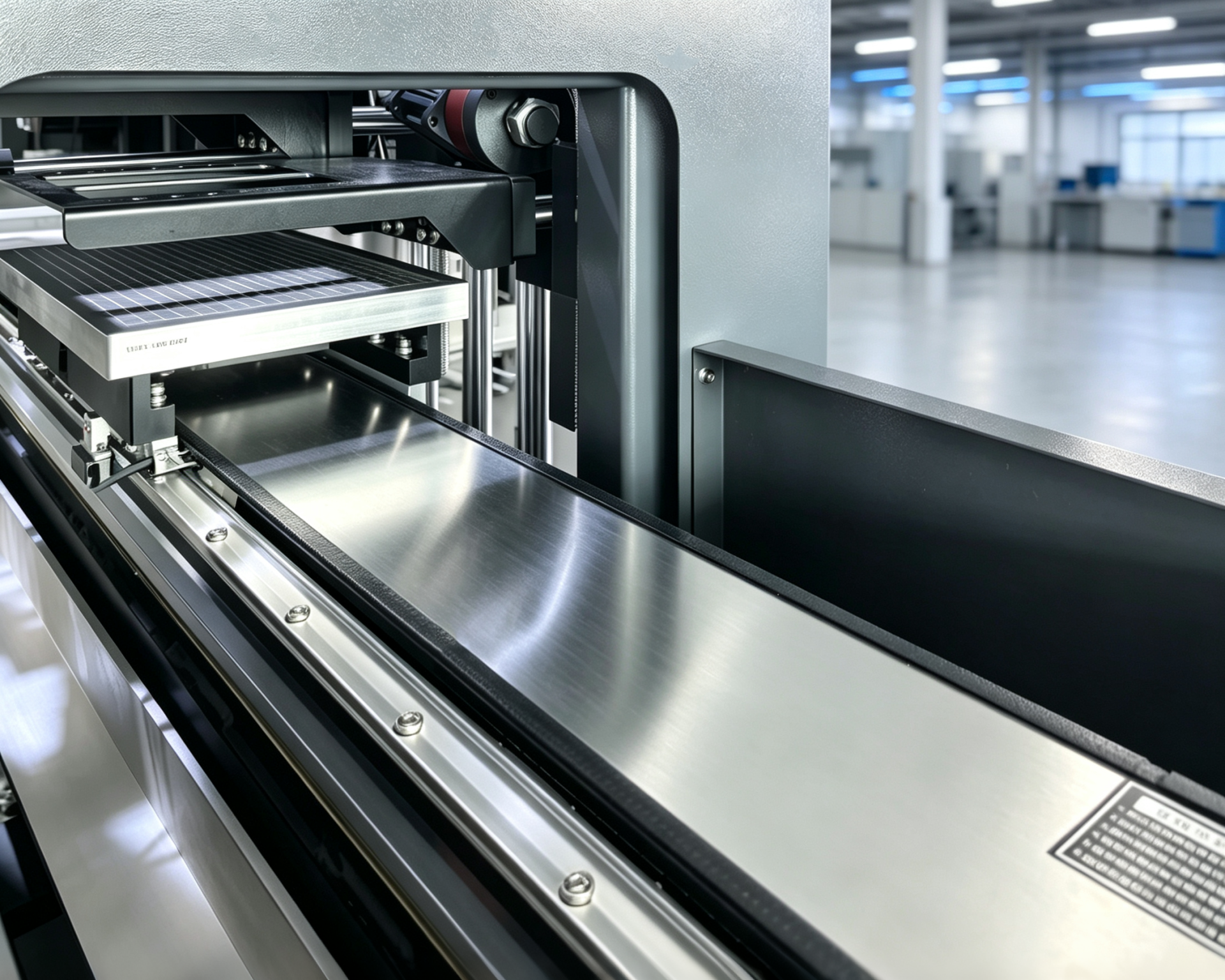

Seamless 360-Degree Single Pass Imaging

Seamless 360-Degree Single Pass Imaging

The single pass UV printer employs a rotary encoder synchronized with stationary printheads to lay down the entire image circumference in one continuous motion. This eliminates stitch lines and color shifts that plague segmented printing, achieving a virtually invisible join. A UK gin distillery leveraged this to produce wrap-around botanical illustrations that appear hand-painted. The system processes 350 bottles per hour with a position accuracy of ±0.03mm, even on slightly oval glass. Adaptive tension control grips without marring, and automatic skew correction rejects containers exceeding tolerance before printing. This reliability enables lights-out production; one customer runs 16-hour unattended shifts, relying on remote alerts. The seamless output reduced their quality control reject rate from 4% to below 0.3%.

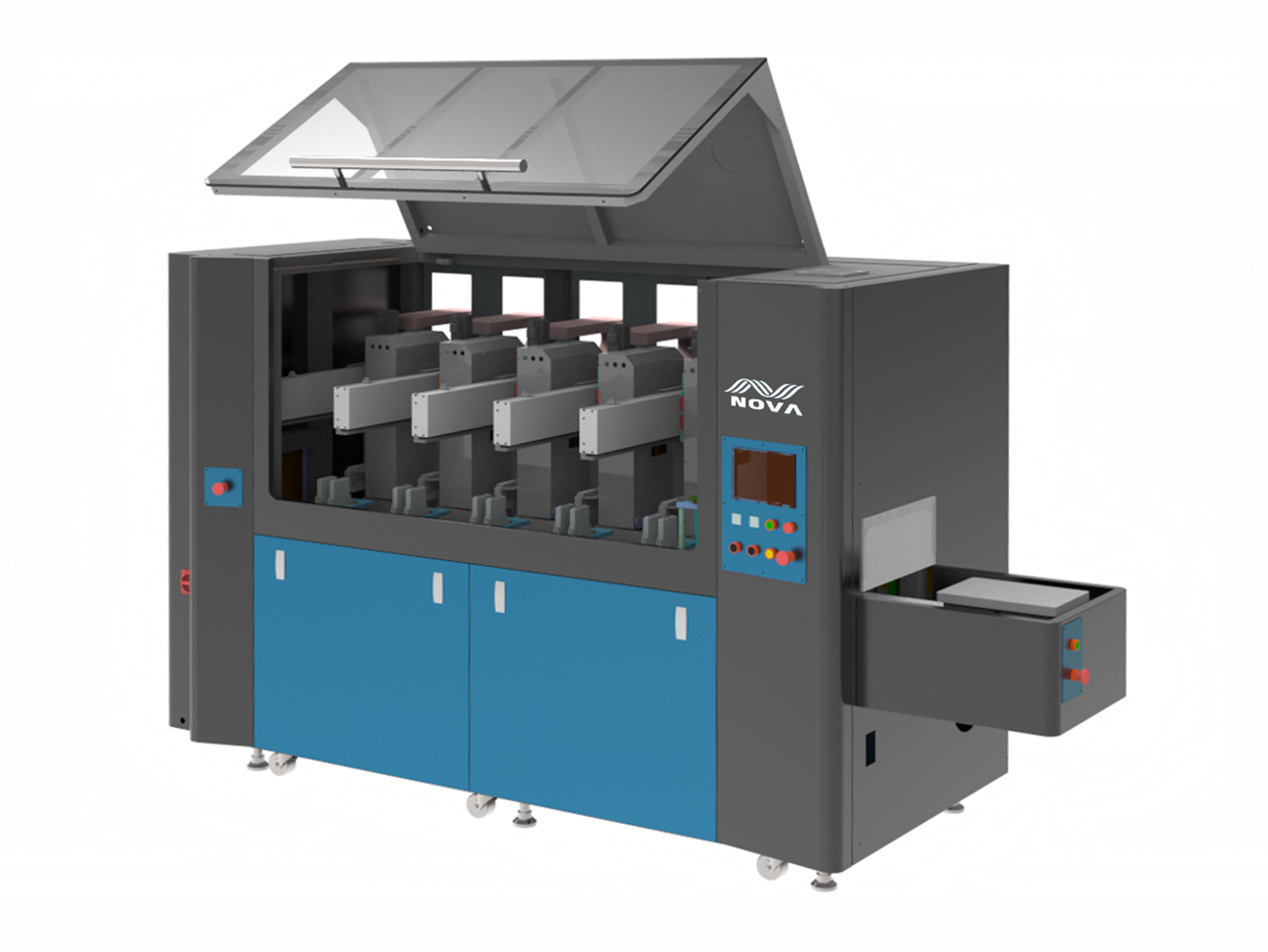

Dynamic Taper And Surface Compensation

Dynamic Taper And Surface Compensation

Many single pass printers struggle with tapered and contoured surfaces, but NOVA built dynamic 3D mapping into its RIP. Laser profilers scan each item and adjust pixel placement in real time, correcting for diameter changes up to 10% along the print zone. A cosmetic brand used this to decorate cone-shaped serum bottles with distortion-free metallic text that follows the curve. Without this compensation, images would appear stretched at the neck. The software also adjusts drop velocity to maintain consistent dot size as head-to-surface distance varies, holding image sharpness. A Mexican tequila producer validated the system on their iconic barrel-shaped bottles, achieving uniform coverage with less than 0.5mm variance, which previously required five operator adjustments on analog machines.

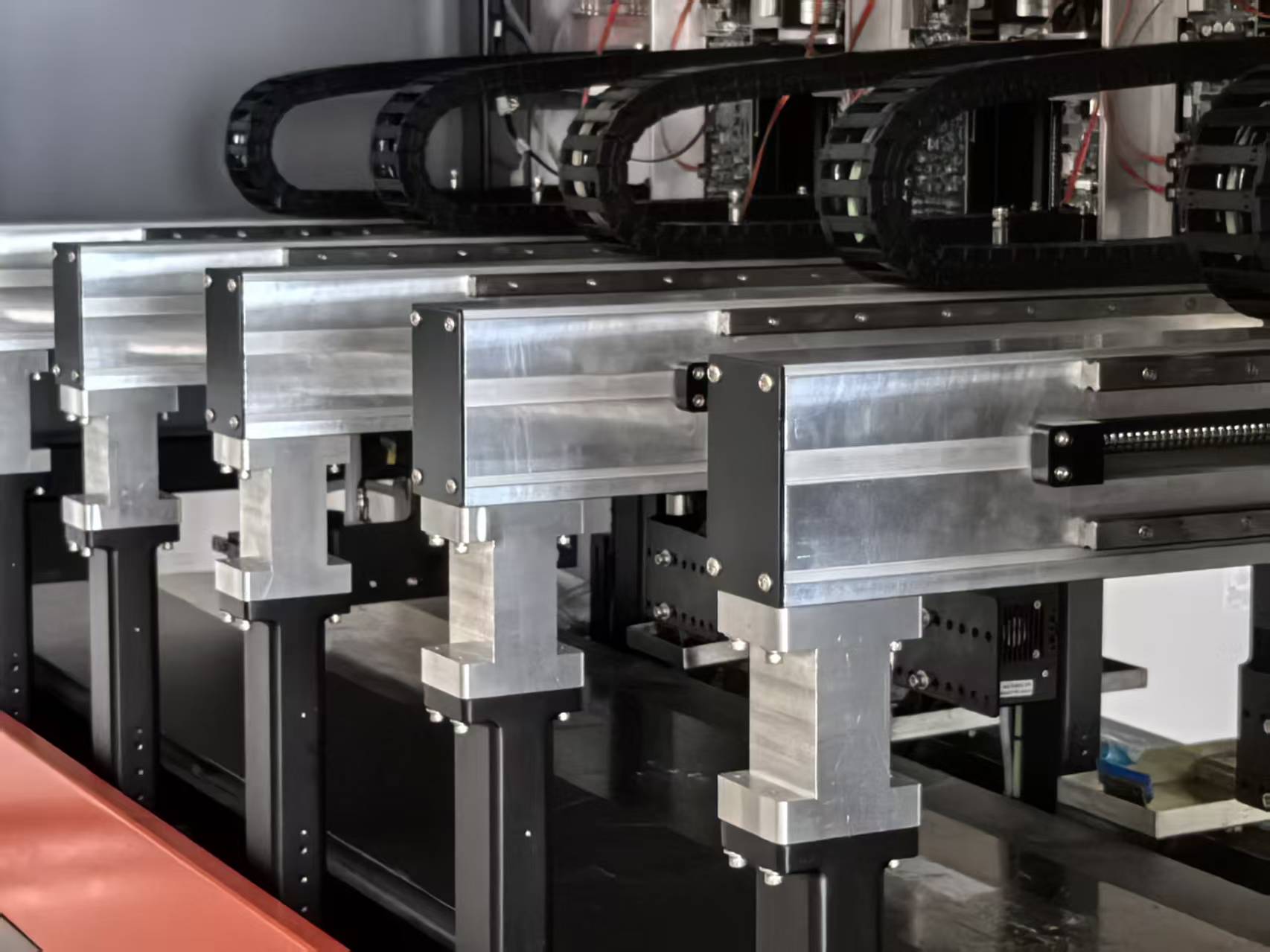

Integrated Varnish And Embellishment Station

Integrated Varnish And Embellishment Station

NOVA’s single pass UV printer includes dedicated spot varnish and digital embossing channels that operate within the same revolution. This allows selective high-gloss, matte, or raised haptic effects without secondary offline processes. A premium olive oil producer used this to create a textured wax-seal effect digitally, eliminating 30,000 hand-applied wax seals monthly. The varnish cures instantly alongside CMYK, so decorated bottles exit ready to pack. Controlled film thickness from 10 to 100 microns provides both subtle and bold tactile contrast. A fragrance brand realized a 40% reduction in packaging cost while increasing perceived value, as confirmed by focus groups. Because the embellishment is digital, design changes do not incur tooling or downtime, enabling agile marketing campaigns.
